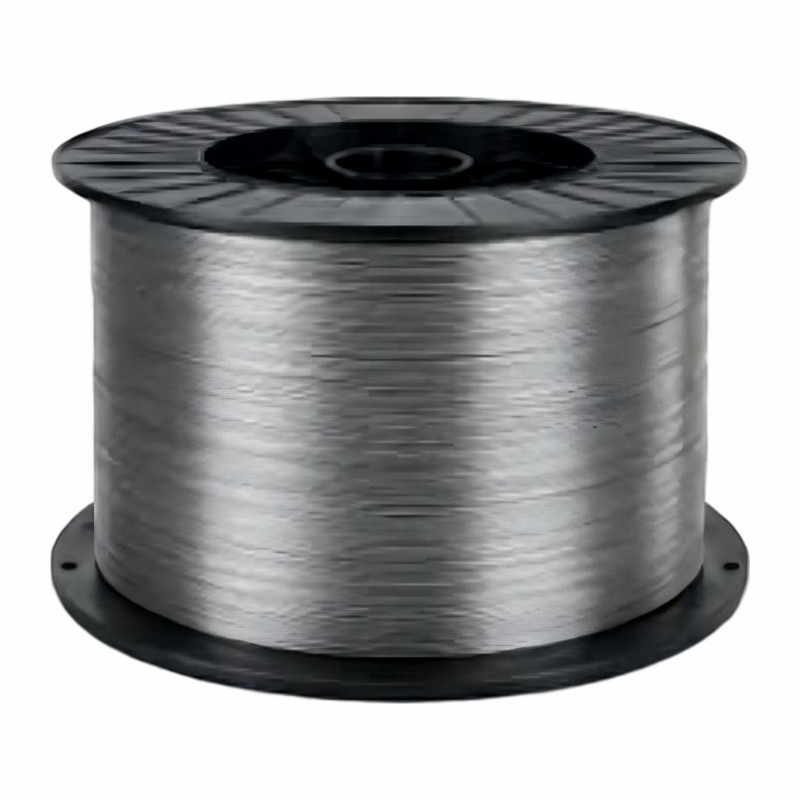

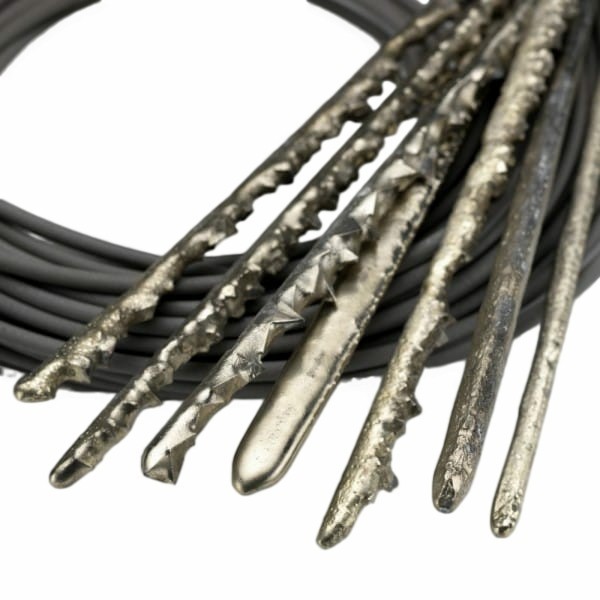

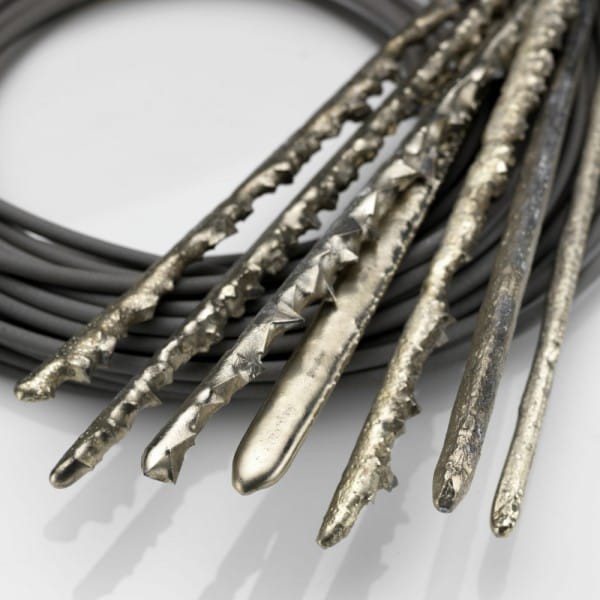

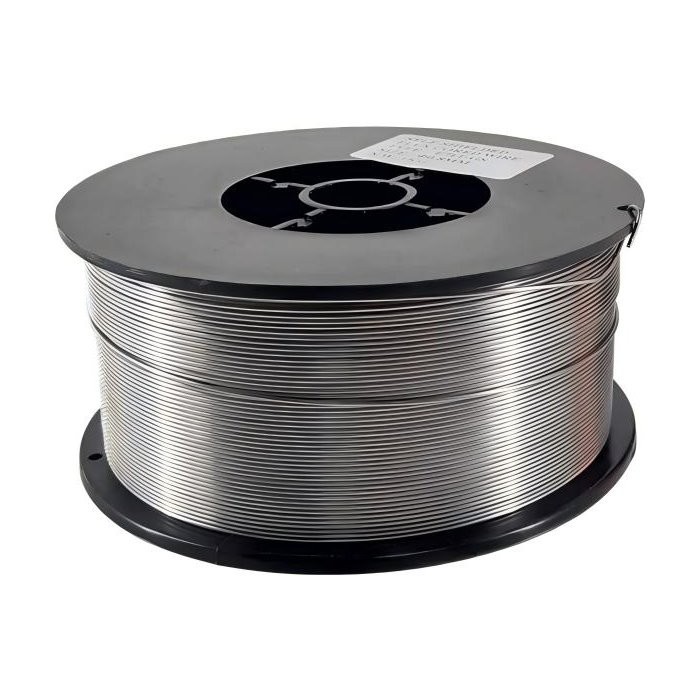

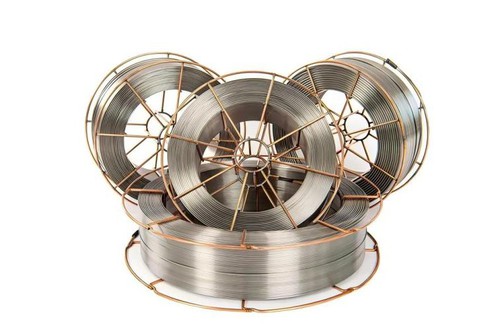

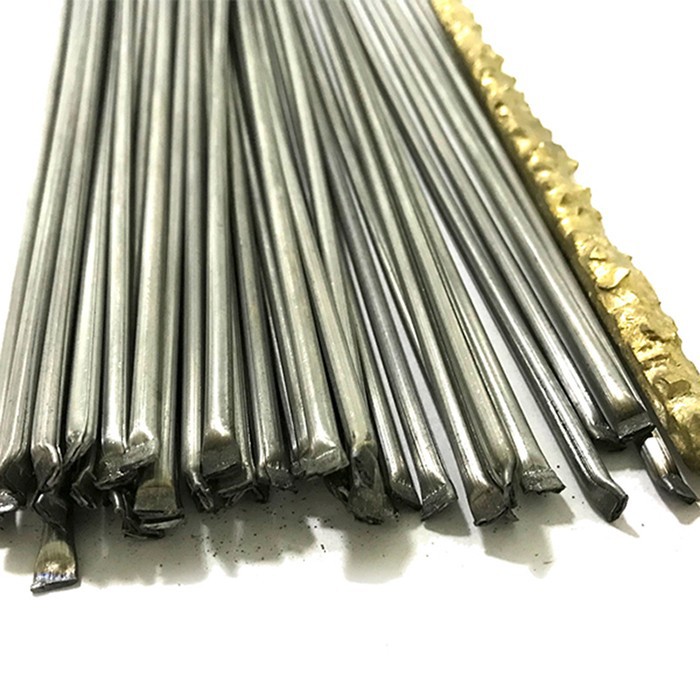

Tungsten Carbide Welding Wire
Tungsten Carbide Welding Wire exists in the form of flux-cored wire. By welding a special alloy containing high-hardness tungsten carbide particles onto the surface of metal workpieces, it can resist high-intensity abrasive wear. It is suitable for semi-automatic or automated welding, with high efficiency and beautiful weld formation.
- Product Introduction
Tungsten Carbide Welding Wire
Tungsten Carbide Welding Wire exists in the form of flux-cored wire. By welding a special alloy containing high-hardness tungsten carbide particles onto the surface of metal workpieces, it can resist high-intensity abrasive wear. It is suitable for semi-automatic or automated welding, with high efficiency and beautiful weld formation.
Product Features
1. Advantages of the composite structure:
The welding wire powder contains high-hardness cast tungsten carbide (microhardness 2400 HV - 3000 HV or above), serving as the "framework" to resist wear; the tungsten carbide particles are evenly distributed in the nickel-based or iron-based alloy matrix (matrix hardness 40 - 55 HRC), supporting the particles and absorbing impact energy.
2. Scientific working principle:
During welding, the low-melting-point base alloy melts to form a molten pool, and the high-melting-point tungsten carbide particles (about 2700°C) do not completely melt but are encapsulated, forming a "metal matrix composite" overlay layer.
3. Excellent performance indicators:
The overlay layer has high hardness (base phase 40 - 55 HRC, tungsten carbide particles 2400 - 3000 HV); the tungsten carbide content is 20% - 62% (by weight) and can be selected as needed; the base material has nickel-based (corrosion-resistant, high-temperature-resistant, good fluidity, suitable for petroleum, chemical industries) and iron-based (low cost, good compatibility with steel base material) types; the surface cracking of the weld layer is normal and does not peel off, which does not affect usage.
4. Strong compatibility welding process:
Use low heat input, small current and voltage; the shielding gas uses CO₂ or Ar/CO₂ mixture gas, with a flow rate of 20 - 25 L/min; preheat the carbon steel base to about 300°C, control the interlayer temperature; the dry extension length of the welding wire is 15 - 25mm, and usually one layer of overlay is optimal.
Application
1. Oil drilling: Key components such as drill pipe joints and stabilizers are welded with nickel-based tungsten carbide wear-resistant welding wire, which can enhance wear resistance and extend service life. This is a typical application in the high-end sector.
2. Construction machinery: Components such as blades of concrete mixers, screw conveyors (conveyor drums), and dredger teeth of dredging vessels are repaired and strengthened with this welding wire, which can reduce failure rates, minimize downtime, and increase production efficiency.
3. Mining / Cement: Components such as hammer heads of crushers, grinding discs of ball mills, and chute liners can be welded with this welding wire to effectively resist abrasive wear, reduce replacement frequencies, and save costs.
Specification
|
Item |
Specification |
|
Product Name |
Tungsten Carbide Welding Wire |
|
Type |
Flux-Cored Wire / Solid Wire / Flexible Rope Wire |
|
Diameter |
1.2 mm – 4.0 mm (Customizable) |
|
Length |
300 mm / Coil (Customizable) |
|
Tungsten Carbide Content |
60% – 80% |
|
Binder Material |
Nickel-based / Iron-based / Cobalt-based |
|
Carbide Type |
WC (Tungsten Carbide) / W2C |
|
Particle Size |
60 – 200 mesh (Customizable) |
|
Hardness |
HRC 55 – 70+ |
|
Density |
12 – 15 g/cm³ |
|
Melting Point (WC) |
≥ 2800°C |
|
Welding Methods |
TIG / MIG / PTA / Oxy-Acetylene |
|
Deposition Thickness |
1 – 10 mm (Multi-layer available) |
|
Operating Temperature |
Up to 1000°C+ |
|
Surface Condition |
Flux-coated / Polished / As-welded |
|
Packaging |
Carton / Wooden Case / Spool |
|
Certification |
ISO / CE (Optional) |
Customized Service
1. Component-specific customization
Based on the specific operating conditions of the work, the content of tungsten, the size of tungsten carbide particles, and the ratio of alloy elements can be flexibly adjusted to achieve the optimal balance between wear resistance and cost-effectiveness.
2. Process-friendly support
Provide detailed guidance on welding parameters, including key indicators such as current, voltage, and gas flow rate, to help customers optimize the overlay welding process and ensure the welding effect reaches the best state.
3. Professional technical consultation
A professional team composed of experienced senior engineers provides one-on-one technical consultation services. For actual problems such as welding cracks and layer thickness control, they offer practical and feasible solutions.
FAQ
1. What is the purpose of tungsten carbide welding wire?
It is mainly used for overlay welding, aiming to enhance the wear resistance of metal components. It is widely applied in various fields such as mining, oil and gas extraction, agriculture, and construction equipment, effectively prolonging the service life of components.
2. Why is tungsten carbide used in welding wire?
Tungsten carbide is one of the most hard materials known, with extremely strong anti-wear and anti-corrosion capabilities, making it particularly suitable for use in harsh working environments.
3. Which welding processes can this welding wire be used for?
Common welding methods include:
MIG/MAG welding (the most widely used)
TIG welding (gas shielded arc welding)
PTA welding (plasma transfer arc welding)
oxy-fuel welding
These methods can be flexibly selected based on precision requirements and production needs.
4. Will the use of tungsten carbide for overlay welding change the characteristics of the base metal?
No, the base metal is usually not adversely affected. The heat-affected zone is small, and its hardness is similar to that of the original material.
5. How long can the lifespan of components be extended after overlay welding?
Generally, tungsten carbide overlay welding can significantly extend the lifespan of components:
Compared with untreated components, it can be extended by 6 to 10 times.
Compared with components using traditional overlay welding methods, it can be extended by 3 to 6 times.
6. Which industries typically use tungsten welding wire?
Tungsten welding wire is widely used in the following industries:
Mining and oil drilling industry
Natural gas extraction industry
Agricultural machinery manufacturing industry
Cement and bulk material handling equipment manufacturing industry
General manufacturing equipment industry
7. What is the structure of tungsten carbide welding wire?
It is usually composed of the following parts:
Tungsten carbide particles (as the hard phase)
Metal matrix (using nickel, iron or cobalt-based binder)
These tungsten carbide particles are embedded in the welding layer to form a durable composite coating.
8. Is tungsten welding wire suitable for all metals?
Tungsten welding wire is suitable for most steels, such as carbon steel, alloy steel, and stainless steel, but it is not recommended for manganese steel or certain specific types of cast iron, as there may be a risk of cracking.
9. What are the main advantages compared to traditional overlay welding materials?
Compared to chromium-based overlay welding materials:
Higher hardness
More stable wear resistance
Outperforming in extreme wear conditions
10. What factors affect the welding performance?
The main influencing factors include:
Heat input (excessive heat can damage the carbide structure)
The size and distribution of carbide particles
Welding parameters (such as voltage, current)
Appropriate surface treatment
Proper control of these factors can ensure the best wear resistance and coating quality.
Contact us today to receive a detailed technical proposal and quotation for Pure Tungsten Wire, and unlock highly efficient, wear-resistant solutions!
