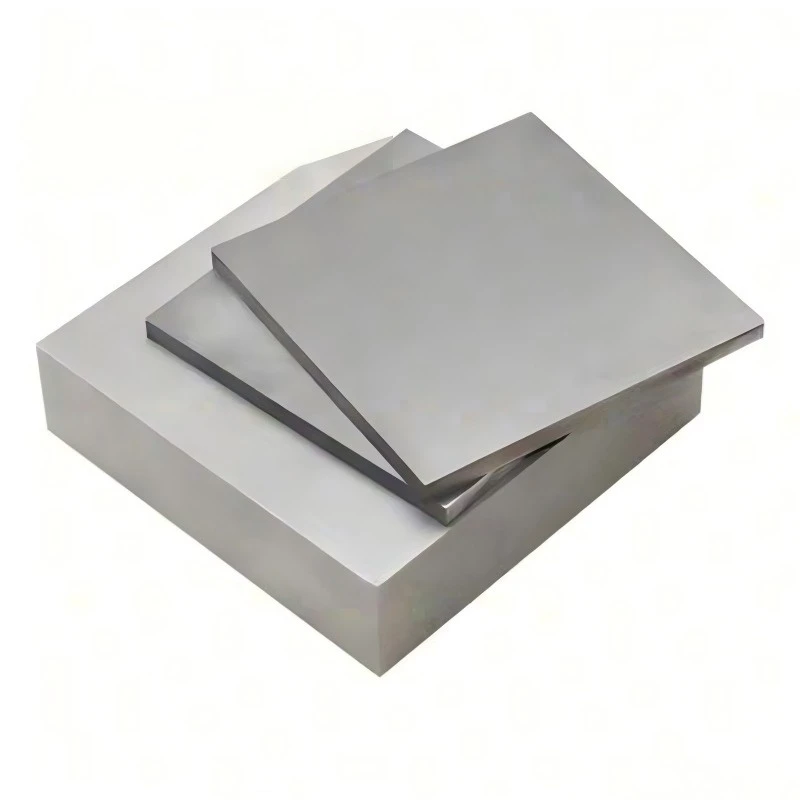

Custom Molybdenum Sheets & Plates
Manufactured for plastic molds, vacuum furnaces, and high-temperature industrial tooling.
- Product Introduction
Precision Molybdenum Sheets & Plates
Manufactured for plastic molds, vacuum furnaces, and high-temperature industrial tooling.
Technical Specifications & Manufacturing Limits
We produce custom molybdenum sheets and plates from high-purity powder metallurgy blanks, designed for applications requiring strict dimensional stability under thermal stress.
|
Parameter |
Specification |
|
Material Grade |
Pure Molybdenum (Mo >= 99.95%) |
|
Applicable Standards |
ASTM B386 (Molybdenum and Molybdenum Alloy Strip, Sheet, Foil, and Plate) |
|
Thickness Range |
0.1 mm to 50 mm (Customized per drawing) |
|
Max Width / Length |
Width up to 600 mm, Length up to 2000 mm |
|
Density |
>= 10.2 g/cm3 |
|
Melting Point |
2,623 deg C (4,753 deg F) |
|
Thermal Expansion |
4.8 x 10^-6 / K (20--100 deg C) |
Key Material Properties & Industrial Application
High-Temperature Structural Integrity
Molybdenum maintains its mechanical strength and creep resistance at elevated temperatures where conventional steels and nickel-base superalloys fail.
• Plastic Mold Industry: Used for precision mold inserts, heat-resistant partition plates, and hot-runner components, preventing thermal fatigue and distortion during high-cycle injection molding.
• Thermal Processing: Utilized for vacuum furnace heating elements, heat shields, and sintering boats exposed to cyclic heating up to 1,800 deg C in protective atmospheres.
Low Thermal Expansion & High Precision
With a low coefficient of thermal expansion (4.8 x 10^-6 / K), molybdenum components experience minimal dimensional change during rapid thermal fluctuations. This ensures tight tolerances are maintained in semiconductor processing fixtures and precision aerospace tooling.
Surface Finish Options
As-Rolled Surface: Retains the mill finish; optimized for general industrial structures or customers performing secondary blanking and machining.
Alkaline Cleaned / Chemically Etched: Oxide-free surface finish suitable for vacuum furnace environments where outgassing must be minimized.
Ground / Polished Surface: Mechanically ground to achieve a surface roughness of Ra <= 0.8 um, ensuring precise thickness uniformity and flatness for mold contact surfaces.
Processing & Custom Fabrication
We deliver semi-finished plates or fully finished components based on CAD drawings, backed by years of manufacturing experience serving global vacuum furnace and mold industry leaders. Our internal secondary processing capabilities include:
Laser & Waterjet Cutting: For net-shape or near-net-shape blanks.
CNC Milling & Drilling: For complex pocketing, counterbores, and cooling/ventilation hole patterns.
Surface Grinding: To achieve tight thickness tolerances (+- 0.02 mm available upon request).
Quality Assurance & Material Traceability
Every production lot undergoes rigorous inspection prior to dispatch:
Chemical Analysis: Spectrographic verification ensuring Mo >= 99.95% and controlled interstitial impurity levels (C, O, N, H, Fe, Si).
Dimensional Verification: Micrometer and coordinate measuring machine (CMM) checks for thickness, width, length, and flatness deviation.
Material Certification: Supplied with a Mill Test Certificate (MTC) in accordance with EN 10204 / 3.1.
FAQ
Q: What purity of molybdenum sheets do you provide?
A: We mainly supply high-purity molybdenum sheets and plates with molybdenum content typically reaching 99.95% or higher, depending on customer requirements.
Q: What thicknesses of molybdenum plates can you manufacture?
A: Thickness can be customized according to customer drawings and application requirements. Please contact us with your required dimensions for technical confirmation.
Q: Can you provide custom-cut molybdenum plates?
A: Yes. We provide customized cutting and machining services, including cutting, grinding, drilling, and CNC processing.
Q: Are molybdenum sheets suitable for plastic mold applications?
A: Yes. Molybdenum is suitable for certain plastic mold applications requiring high-temperature stability, low thermal expansion, and resistance to thermal deformation.
Q: What standards do your molybdenum sheets follow?
A: Our products can be manufactured according to relevant molybdenum material standards, including ASTM specifications such as ASTM B386, depending on product type and customer requirements.
Q: How do you ensure product quality?
A: We control quality through material inspection, dimensional measurement, surface inspection, and performance testing before shipment.
