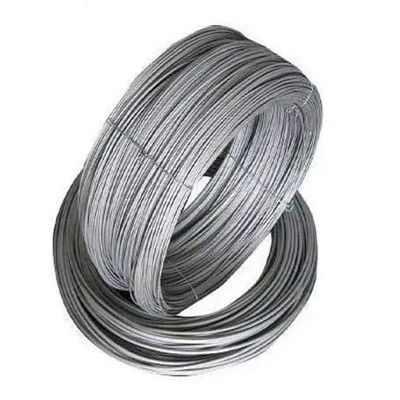

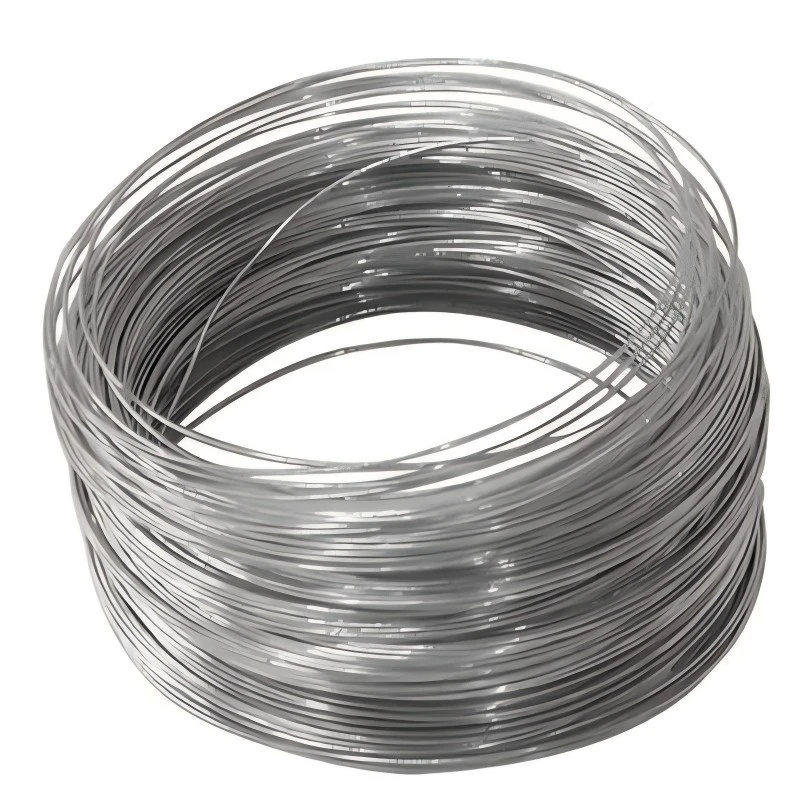

Molybdenum Fine Wires
AllWhereMoly manufactures precision-drawn molybdenum fine wires engineered for high-tolerance plastic mold manufacturing, Electrical Discharge Machining (EDM), and high-temperature furnace components. Utilizing advanced powder metallurgy and multi-stage cold drawing, our wires maintain tight diameter tolerances and exceptional mechanical strength under elevated thermal stress, ensuring reliable performance for global industrial supply chains.
- Product Introduction
AllWhereMoly Molybdenum Fine Wires: Technical Specifications & Industrial Application Guide
AllWhereMoly manufactures precision-drawn molybdenum fine wires engineered for high-tolerance plastic mold manufacturing, Electrical Discharge Machining (EDM), and high-temperature furnace components. Utilizing advanced powder metallurgy and multi-stage cold drawing, our wires maintain tight diameter tolerances and exceptional mechanical strength under elevated thermal stress, ensuring reliable performance for global industrial supply chains.
Technical Specifications
|
Parameter |
Standard Specification |
|
Material |
Molybdenum (Mo) |
|
Purity Grade |
99.95% / 99.97% (Custom purities available upon request) |
|
Diameter Range |
0.01 mm - 3.0 mm |
|
Density |
Approx. 10.2 g/cm3 |
|
Melting Point |
Approx. 2620 C |
|
Thermal Expansion Coefficient |
Approx. 4.8 x 10-6/K (20--100 C) |
|
Surface Finish |
Bright / Cleaned / Custom treated |
|
Packaging |
Spool, coil, or vacuum-sealed export packaging |
Core Material Properties & Processing Advantages
High-Temperature Dimensional Stability
Molybdenum retains structural integrity at extreme temperatures due to its high melting point (2620 C) and elevated recrystallization threshold.
• Thermal Expansion: The low thermal expansion coefficient (4.8 x 10-6/K) strictly limits dimensional shifting during repeated thermal cycling.
• Application Impact: Prevents micro-deformation in precision mold inserts, hot-runner components, and semiconductor tooling where thermal fluctuation compromises cavity accuracy.
Mechanical Strength & Uniform Tensile Performance
Controlled multi-stage wire drawing increases material density and structural uniformity across the entire spool length.
• Performance: Minimizes unexpected wire breakage during automated EDM operations and high-speed cutting.
• Straightness: Controlled residual stress ensures high straightness, reducing setup adjustments and machining deviations in micro-machined mold cavities.
Precision Diameter Tolerances (0.01 mm - 3.0 mm)
Strict dimensional control ensures predictable electrical discharge and mechanical behavior.
|
Diameter Range |
Primary Industrial Application |
|
0.01 mm - 0.05 mm |
Micro-machining, precision electronic mold components |
|
0.05 mm - 0.20 mm |
Wire EDM fine cutting, intricate cavity profiling |
|
0.20 mm - 1.00 mm |
Standard mold components, industrial mechanical parts |
|
1.00 mm+ |
Structural elements, vacuum furnace heating components |
Electrical Conductivity & EDM Efficiency
Optimized surface chemistry and high purity (99.95%+) provide stable electrical discharge performance.
• Benefit: Reduces pitting, maintains a consistent spark gap, and produces superior surface finishes on complex injection mold cores and deep-draw cavities.
Manufacturing Process
Raw Material Selection: High-purity molybdenum powder is rigorously analyzed for chemical composition and particle size consistency prior to consolidation.
Powder Metallurgy: Isostatic pressing and high-temperature sintering yield fully dense, uniform molybdenum blanks free of internal voids.
Multi-Stage Drawing: Blanks undergo sequential cold-drawing through diamond dies, systematically increasing tensile strength and achieving strict target diameters.
Surface Treatment & Quality Audit: Wires are thoroughly cleaned to remove drawing lubricants, followed by batch testing for diameter tolerance, tensile strength, elongation, and surface integrity.
Quality Control & Inspection Protocols
To guarantee batch-to-batch repeatability for international industrial buyers, every production lot undergoes:
Chemical Analysis: Verification of Mo purity (99.95% / 99.97%) via advanced spectrometry.
Dimensional Checks: High-precision laser micrometers verify outer diameter and ovality across the entire spool.
Mechanical Testing: Tensile strength and elongation are measured to ensure full compliance with strict application thresholds.
Surface Inspection: Visual and microscopic checks confirm the complete absence of micro-cracks, oxide scales, or drawing residues.
FAQ
Q: What are molybdenum fine wires mainly used for?
A: Molybdenum fine wires are primarily utilized in precision industries such as plastic mold manufacturing, EDM machining, high-temperature components, and industrial heating applications. For plastic mold manufacturers, they are commonly selected for their high temperature resistance, dimensional stability, and mechanical strength.
Q: Why is molybdenum suitable for plastic mold applications?
A: Molybdenum combines an extremely high melting temperature, low thermal expansion, and excellent mechanical strength. These inherent properties allow the material to maintain stable performance during precision machining and demanding high-temperature working conditions.
Q: What diameter sizes of molybdenum fine wires can you supply?
A: We supply standard molybdenum fine wires ranging from 0.01 mm to 3.0 mm. Fully customized diameters are also available based on customer engineering drawings or specific application requirements.
Q: What purity levels are available?
A: Our standard stock purity grades include:
99.95% Molybdenum
99.97% Molybdenum
Higher purity requirements can be discussed and tailored according to unique application environments.
Q: Can you provide customized molybdenum wire solutions?
A: Yes. We provide comprehensive OEM/customization services, including:
Custom diameters and tight tolerances
Specialized surface finishes
Tailored spool sizes and specialized vacuum-sealed export packaging
Q: How do you ensure product quality and consistency?
A: Each production batch is strictly inspected for chemical composition, diameter accuracy, surface quality, and mechanical properties. Detailed quality inspection records and material test reports (MTR) can be provided for industrial and corporate customers.
