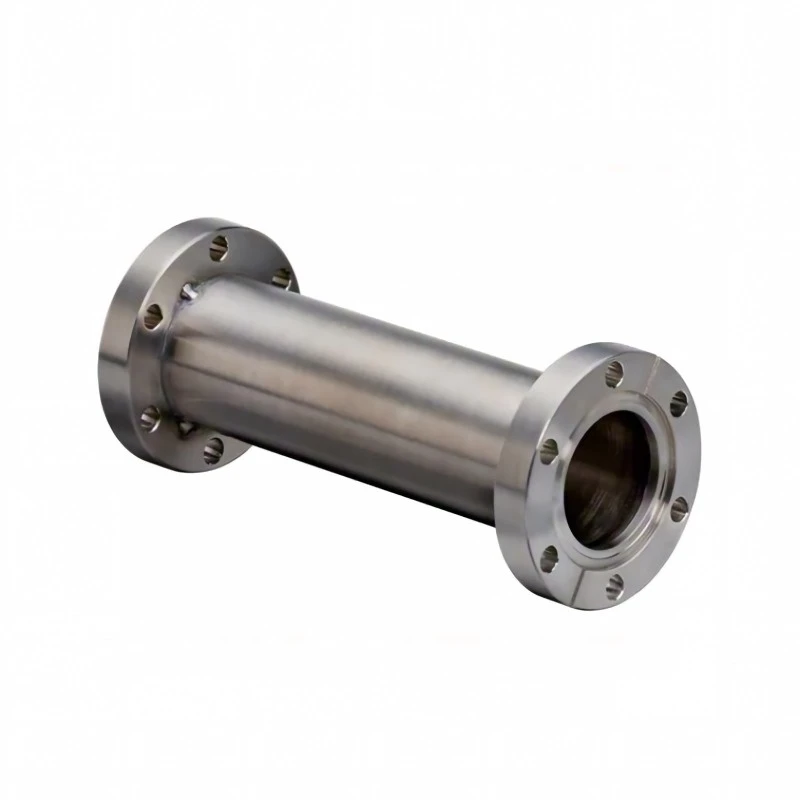

Titanium Vacuum Components

1. Material Selection Based on Vacuum Conditions

Different vacuum systems have different material requirements. Commercially pure titanium can be selected where corrosion resistance and material stability are priorities, while Ti-6Al-4V is better suited to structural components requiring higher mechanical strength. China Super Tech selects the material according to the actual operating conditions rather than using one material for every application.

2. CNC Machining for Critical Fitting Areas

Vacuum components often include mounting holes, threads, sealing grooves, and mating surfaces that must fit accurately during assembly. CNC turning and milling allow these areas to be machined according to customer drawings, helping reduce installation problems caused by dimensional deviations.

3. Lightweight Structure with High Specific Strength

Titanium has a lower density than many conventional structural metals while maintaining high strength. This makes it useful for internal supports, brackets, fixtures, and mounting components where reducing equipment weight without sacrificing structural performance is important.

4. Controlled Welding for Custom Structures

For welded titanium assemblies, the weld area can affect structural integrity and vacuum performance. China Super Tech can provide titanium welding according to component geometry and application requirements, with attention to weld quality and subsequent inspection to reduce potential defects.

5. Integrated Machining and Surface Treatment

Vacuum components may require more than basic machining. Depending on the application, China Super Tech can integrate material sourcing, CNC machining, welding, polishing, pickling, and passivation. This reduces the quality and communication gaps that can occur when different suppliers handle each production stage.

1.Semiconductor and Vacuum Coating Equipment

Vacuum coating and semiconductor-related equipment often require internal components that remain stable in low-pressure environments while minimizing corrosion and contamination risks. Titanium supports, fixtures, mounting parts, and other non-consumable components can be used where their material properties meet the process requirements.

2.Vacuum Furnaces and Heat Treatment Equipment

Vacuum furnaces contain internal components that experience temperature changes and mechanical loading. Titanium parts can be used for selected supports, fixtures, and mounting structures when the temperature and process conditions are suitable. Their relatively low density can also help reduce the weight of internal assemblies.

3.Vacuum Pump and Vacuum System Components

Some vacuum systems operate in environments where corrosion resistance is important. Titanium connectors, supports, mounting components, and other auxiliary parts can provide an alternative to conventional metals in suitable applications, helping reduce material degradation during long-term operation.

4.Laboratory and Research Vacuum Equipment

Research systems often use customized chambers and internal layouts that cannot be accommodated by standard components. Custom titanium parts can be machined with specific hole patterns, threads, mounting surfaces, and complex profiles to match experimental vacuum equipment and laboratory systems.

1.Custom Manufacturing from Drawings or CAD Files

China Super Tech can manufacture custom components from 2D drawings, 3D CAD files, or physical samples. The production process can cover material selection, CNC machining, welding, surface treatment, and final inspection, making it suitable for non-standard vacuum equipment.

2.Sealing Surface and Connection Machining

A vacuum component is not simply a mechanical part with the correct external dimensions. Sealing grooves, flange surfaces, threads, and mating areas can directly affect assembly and sealing performance. These critical areas are therefore machined according to the customer's design and functional requirements.

3.Integrated Titanium Processing

China Super Tech combines titanium material sourcing with CNC machining, welding, and surface treatment. This allows customers to coordinate a major part of the production process with one manufacturer instead of managing separate suppliers for material, machining, and finishing.

4.Prototype to Small-Batch Production

For newly designed vacuum components, customers can start with prototypes or small batches to verify dimensions, installation, and functional requirements before moving to larger production volumes. This is particularly useful for laboratory equipment, vacuum coating systems, and customized industrial vacuum systems.

Item	Specification
Product Type	Titanium vacuum structural parts, connectors, supports, fixtures, mounting parts, and custom components
Materials	Commercially Pure Titanium, Ti-6Al-4V
Common Pure Titanium Grades	Grade 1, Grade 2
Common Titanium Alloy	Grade 5 / Ti-6Al-4V
Machining Methods	CNC Turning, CNC Milling, Drilling, Threading
Component Types	Flanges, supports, brackets, mounting bases, connectors, and custom-shaped parts
Surface Treatment	Machined, Polished, Pickled, Passivated
Manufacturing Basis	2D Drawings, 3D CAD Files, or Samples
Dimensions	Custom according to drawings and component design
Tolerance	Controlled according to component dimensions and customer drawings
Welding	Titanium welding available according to component structure
Inspection	Dimensional inspection, visual inspection, and customer-specified inspection
Packaging	Protective packaging against impact and contamination; customized packaging available
