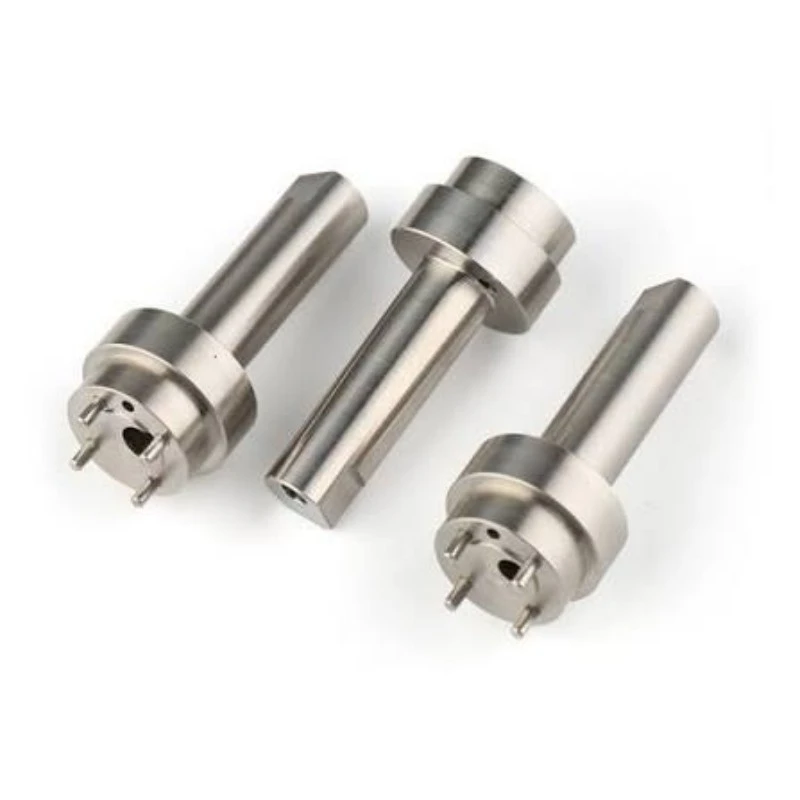

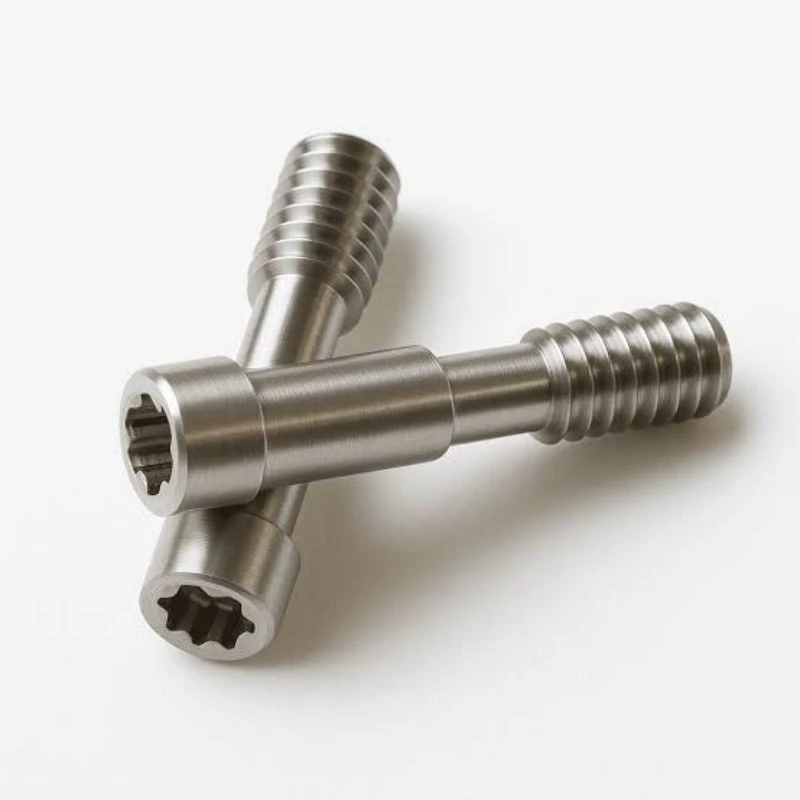

Titanium Precision Machined Parts
The titanium alloy precision machined parts produced by China Super Tech Co., Ltd. are made from aerospace-grade titanium rods. They are formed through five-axis联动CNC machining with a single setup， and the deformation is controlled throughout the process in a constant-temperature workshop. The tolerance can be stably controlled within ±0.01mm， balancing both lightweight and high strength. They are core industrial components that combine durability and precision.
- Product Introduction
Product features
1. Strong corrosion resistance
The raw material is added with an exclusive proportion of molybdenum and palladium elements. It can be used continuously in seawater and weak acid environment for 3 years without obvious rust. Its service life is 4 times longer than that of ordinary stainless steel parts.
2. Lighter weight
The weight is only 57% of that of steel under the same volume, without adding extra load pressure to the equipment.
3. Stable surface accuracy
After processing, our unique non-scratch rolling polishing process is adopted. It can reach a smoothness of Ra0.8 without the need for secondary grinding, and will not scratch the hands of the assembly personnel.
Product Applications
1. Core connector for household water purifiers
Long-term contact with tap water and weak water purifying agents will not cause the release of heavy metals like copper connectors do. This ensures the safety of drinking water and complies with domestic hygiene standards for water-related accessories.
2. Parts of sports bicycles' pedals
The lightweight feature can directly reduce the overall weight of the vehicle, making riding more effortless. It is also resistant to drops and deformation, and is unlikely to be damaged during daily bumpy rides.
3. Shell support for medical handheld therapeutic devices
Safe and non-allergenic, long-term hand-held use will not irritate the skin. Repeated high-temperature disinfection will not cause deformation or color fading.
Customized service
1. Small-batch rapid prototyping
Relying on three high-precision prototyping machines of our own, the first sample can be delivered within 3 days. There is no need to wait in line for the production schedule of large orders, helping customers accelerate project testing.
2. Non-standard tolerance adaptation
According to the actual assembly requirements of the customer, the tolerance of the key positions in the local area can be tightened to ±0.005mm, adapting to special tight assembly scenarios.
3. Complementary surface treatment
The anodizing and micro-arc oxidation treatments that the customer needs can be directly completed. The customer can directly install and use it after receiving it, without having to find a third-party processing factory for secondary circulation.
Specification
|
Parameter |
Specification |
|
Product Name |
Titanium Precision Machined Parts |
|
Material |
Pure Titanium, Titanium Alloys |
|
Common Grades |
Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 23 (ELI) |
|
Manufacturing Process |
CNC Turning, CNC Milling, Drilling, Grinding, Threading, EDM |
|
Tolerance |
±0.005 mm (Custom Available) |
|
Surface Roughness |
Ra 0.2–1.6 μm |
|
Part Size |
Customized According to Drawings |
|
Maximum Dimension |
Up to 1000 mm |
|
Minimum Feature Size |
0.2 mm |
|
Thread Standard |
Metric, UNC, UNF, BSP, NPT or Custom |
|
Surface Treatment |
Polishing, Sandblasting, Anodizing, Passivation, Bead Blasting |
|
Heat Treatment |
Annealing, Stress Relieving (Optional) |
|
Inspection |
CMM Inspection, Dimensional Inspection, Material Certification |
|
Available Drawing Format |
PDF, DWG, DXF, STEP, STP, IGS, IGES, X_T |
|
Quality Standard |
ISO 9001 |
|
OEM / ODM |
Supported |
|
Customization |
Material, Dimensions, Tolerance, Surface Finish, Packaging |
|
Packaging |
Protective Film, Foam, Vacuum Packaging, Wooden Case or Carton |
FAQ
What information is needed to get a quotation?
+
-
To provide an accurate quotation, please send your 2D drawing or 3D CAD file along with the required material grade, quantity, tolerance, surface finish, and any special requirements. Our engineering team will review the design and provide the most cost-effective machining solution.
What machining tolerance can you achieve?
+
-
We can manufacture titanium precision machined parts with standard tolerances of ±0.02 mm and precision tolerances up to ±0.005 mm, depending on the part geometry. All critical dimensions can be verified by CMM inspection to ensure accuracy.
Which titanium grades are available?
+
-
We machine a variety of titanium materials, including Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, and Grade 23 (ELI). Our engineers can recommend the most suitable grade based on your application, strength, corrosion resistance, and budget.
How do you ensure product quality?
+
-
Quality is controlled throughout the entire production process, from certified raw materials to in-process inspection and final testing. Material certificates, dimensional inspection reports, and CMM reports are available upon request to ensure every part meets your specifications.
Can you manufacture custom titanium parts?
+
-
Yes. We provide OEM and ODM services for prototypes, low-volume, and mass production. Simply provide your drawings or samples, and we will manufacture titanium precision machined parts according to your exact specifications with customized dimensions, tolerances, and surface finishes.
